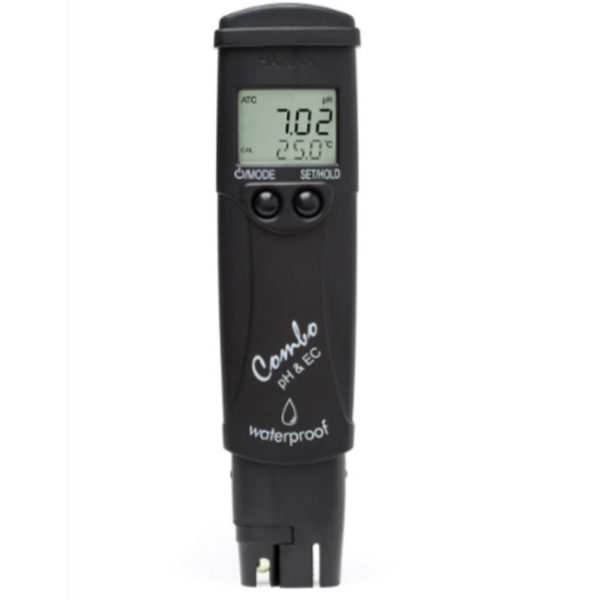

HI98130 Combo pH/Conductivity/TDS Tester (High Range)

fisher brand

Accurate. Waterproof. No more switching between meters for your routine measurements with the HI98130 pH and conductivity tester.

  • Compact & waterproof design fits right in your pocket so you can take it anywhere.
  • Extractable cloth junction extends the life of your pH and conductivity tester.
  • Great for hydroponics, aquariums, pools, & ponds.
Category:
Request a Quote

Description

Details

The HI98130 is a highly accurate, waterproof combo ph ec tester that can also measure EC/TDS in the high range (0.00 to 20.00 mS/cm EC/ 0.00 to 10.00 ppt TDS) and temperature. This floating, waterproof combination tester has an easy to read, LCD and an automatic shut-off. In addition, pH and EC/TDS readings are automatically temperature compensated (ATC) to prevent temperature-related variations in your measurements. For EC/TDS readings, the EC/TDS conversion factor (CONV) is selectable by the user, as well as the temperature compensation coefficient β (BETA).



Replaceable pH Electrode Cartridge

The HI98130 pH and conductivity tester features an easy to replace pH electrode cartridge with an extendable cloth junction. The extendable cloth junction helps increase electrode life and the replaceable pH cartridge means that this tester does not need to be thrown away when the pH sensor is exhausted. Also, the sturdy, snap-in connector means there are no pins to bend or break!



High Accuracy EC/TDS Graphite Probe

The graphite conductivity probe provides greater accuracy because it cannot be contaminated by salt deposits in the solution. The exposed temperature sensor provides fast response times and guarantees highly accurate temperature compensated readings.

Features at-a-glance

  • 3 sensors in a single meter

pH electrode with extractable junction

Amperometric EC/TDS sensor

Exposed temperature probe for faster EC/TDS readings

  • Waterproof

Designed to float if accidently dropped in sample
  • Wide pH Range

pH range is from 0.00 to 14.00 pH
  • Selectable EC to TDS conversion factor

Choice of either a 0.45 or 1.0 conversion factor
  • Automatic Temperature Compensation
All readings are compensated for variations in temperature
Temperature displayed in oC or oF along with pH, EC or TDS reading
  • Stability indicator

Meter displays a clock tag that will disappear when the reading has achieved stability
  • HOLD button

Freezes reading on the display to allow recording of measurement
  • BEPS (Battery Error Prevention System

Meter will automatically shut off if there is not enough power to get an accurate measurement
  • Battery % level at startup
  • Low Battery Indicator
When the level is below 5%, the  battery symbol on the LCD blinks to indicate a low battery condition.
  • Auto-off
Auto-off  feature automatically shuts off  meter after 8 minutes of non-use to maximize battery life

Specifications

pH Range 0.0 to 14.0 pH
pH Resolution 0.01 pH
pH Accuracy (@25ºC/77ºF) ±0.05 pH
Conductivity Range 0.00 to 20.00 mS/cm
Conductivity Resolution 0.01 mS/cm
Conductivity Accuracy (@25ºC/77ºF) ±2% F.S.
TDS Range 0.00 to 10.00 ppt (g/L)
TDS Resolution 0.01 ppt (g/L)
TDS Accuracy ±2% F.S.
Temperature Range 0.0 to 60.0°C / 32.0 to 140.0°F
Temperature Resolution 0.1°C / 0.1°F
Temperature Accuracy (@25ºC/77ºF) ±0.5°C /±1°F
EC/TDS Calibration automatic, one-point at: 12.88 mS/cm, 6.44 ppt (g/L)
pH Calibration automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18)
Temperature Compensation pH: automatic; EC/TDS: automatic with β adjustable from 0.0 to 2.4% / °C
TDS Conversion Factor 0.45 to 1.00
pH Electrode HI73127 (replaceable; included)
Battery Type/Life 1.5V (4) / approx. 100 hours of continuous use, auto-off after 8 minutes of non-use
Environment 0 to 50°C (32 to 122°F); RH max 100%
Dimensions 163 x 40 x 26 mm (6.4 x 1.6 x 1.0’’)
Weight 100 g (3.5 oz.)
Ordering Information HI98130 is supplied with HI73127 pH electrode and HI73128 electrode removal tool, batteries (4 x 1.5V) and instructions.
Warranty 1 year
